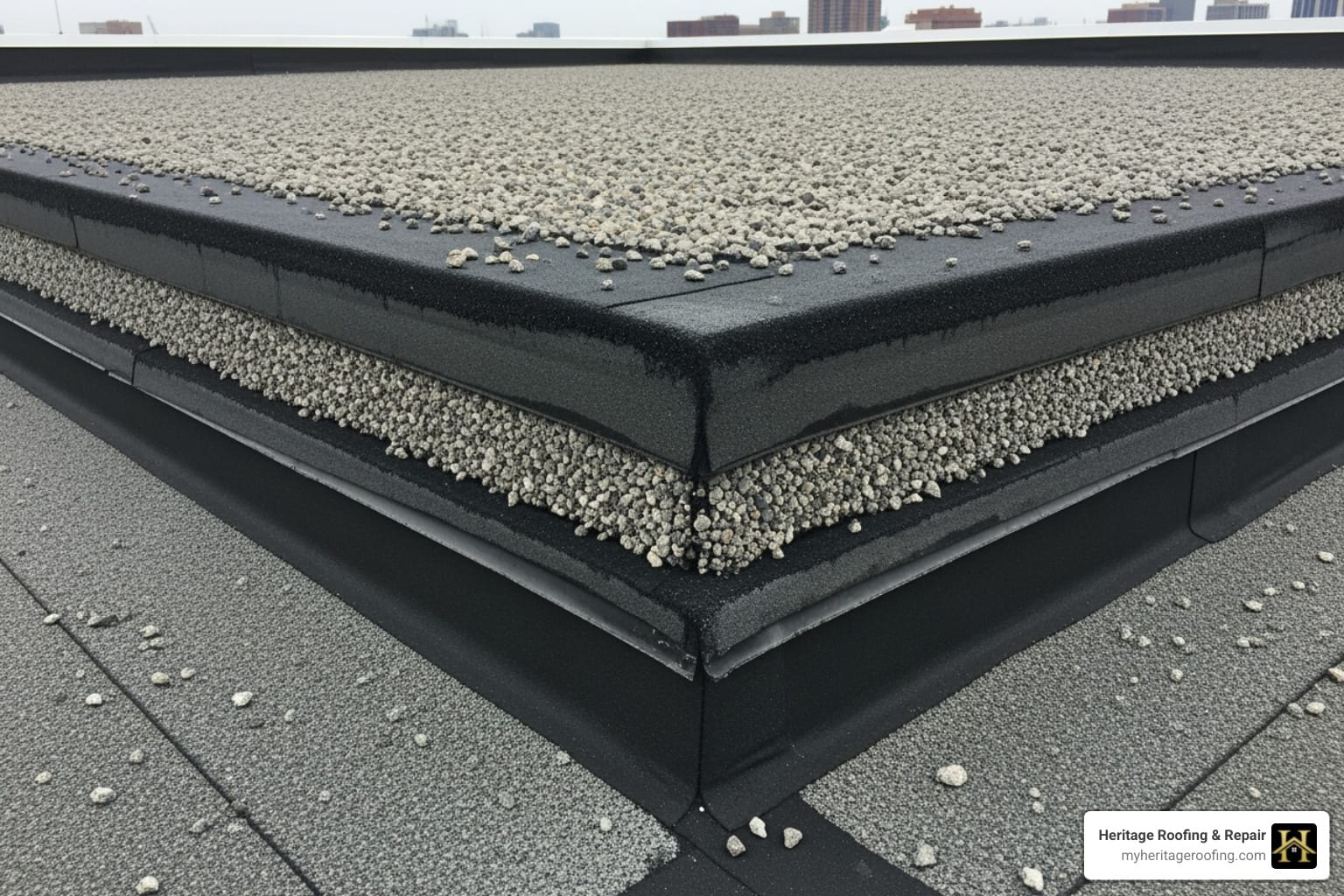

What Makes 4-Ply Built-Up Roofing a Time-Tested Commercial Solution
For over a century, 4-ply built-up roofing (BUR) has been a benchmark for durability in the commercial sector. This multi-layered waterproofing system is engineered to protect flat and low-slope buildings from the harshest conditions. If you are evaluating options for your property, understanding the robust protection offered by a professional commercial roofing system is the first step toward a secure, long-term investment. A 4-ply BUR system stands out by creating redundant layers of defense; if one layer is damaged, the others continue to protect your asset.
Built-up roofing has earned its reputation by outlasting many other flat roofing technologies. While newer systems may offer lower upfront costs, the multi-ply construction of BUR delivers exceptional resistance to punctures, UV damage, and extreme weather. The system is defined by its layered construction and topped with a protective surface like gravel, which shields the underlying membrane from sun exposure and provides superior fire resistance.
Glossary for 4 ply built up roofing:
What is a 4-Ply Built-Up Roofing (BUR) System?
Technically, a 4-ply built-up roofing (BUR) system is a roofing assembly created by alternating four layers of reinforcing felt with hot asphalt (bitumen). This method builds a thick, seamless, and monolithic waterproof membrane directly on the roof deck. Often called “tar and gravel” roofs, these systems have a proven track record of over 100 years. For more background, What Is a Built Up Roof? offers excellent foundational insights.
The Core Components of a 4-Ply Built-Up Roofing System
Each component of a 4-ply built-up roofing system serves a critical function. The quality of the final roof depends on the proper installation of every layer.
- Roof Deck: The structural foundation, typically made of concrete, wood, or steel.
- Vapor Barrier: Prevents moisture from inside the building from rising into the roofing system and compromising insulation.
- Insulation: Polyisocyanurate (Polyiso) boards provide thermal resistance, lowering energy costs and creating a stable substrate for the roof membrane.
- Base Sheet: The first layer of the roofing membrane, providing an initial waterproofing barrier.
- Four Plies of Reinforcing Felt: These layers of fiberglass or polyester felt, fully embedded in hot asphalt, give the roof its tensile strength and form the redundant waterproof core.
- Hot Asphalt (Bitumen): The primary waterproofing agent and adhesive that saturates the felts and bonds all layers into a single, monolithic membrane.
- Surfacing Layer: A top layer of gravel, slag, or a mineral cap sheet that protects the underlying asphalt from UV radiation, hail, and foot traffic, while also enhancing fire resistance.
The Installation Process: Hot Mop vs. Cold-Applied
Installing a 4-ply built-up roofing system is a craft that requires experienced professionals. The two primary methods are hot-mopped and cold-applied.
-
Hot Mop Method: The traditional technique involves heating asphalt in kettles to over 400°F and mopping it onto the roof as each layer of felt is rolled out. This creates a fully adhered, seamless membrane. The process produces fumes and requires strict safety protocols.
-
Cold-Applied Systems: A modern alternative that uses solvent-borne asphalt adhesives applied at ambient temperatures. This method eliminates the fire hazards and intense fumes associated with hot kettles, offering greater installation flexibility.
Both methods, when executed by a skilled crew, result in a durable and long-lasting 4 ply built up roofing system. The quality of the installation is the single most important factor in the roof’s long-term performance.
The Pros and Cons of a 4-Ply System: Is It Right for Your Building?
Choosing the right commercial roofing system requires balancing your building’s needs, climate, and budget. A 4-ply built-up roofing system offers over a century of proven performance, but weigh its advantages against its specific requirements to determine if it’s the right fit for your property.
Key Advantages: Why Choose a 4-Ply BUR?
When durability and long-term reliability are top priorities, 4-ply built-up roofing delivers a host of time-tested benefits.
- Exceptional Durability: The thick, multi-layered membrane is highly resistant to wear and tear from weather and maintenance activities.
- Superior Puncture Resistance: Multiple layers and a gravel surface create a robust barrier against dropped tools, foot traffic, and debris. ARMA confirms that BUR systems excel in resisting punctures and tears.
- Redundant Waterproofing: With four distinct waterproofing layers, a single point of damage does not lead to a leak. This provides unparalleled peace of mind.
- High Foot Traffic Resistance: The rigid and stable surface is ideal for roofs that house HVAC units, solar panels, or other regularly serviced equipment.
- Excellent Fire Resistance: Gravel-surfaced BUR systems typically achieve a UL Class A fire rating, the highest classification available.
- Proven Lifespan: With proper installation and routine maintenance, these systems are known to last 30 years or more, offering a remarkable return on investment.
Potential Drawbacks and Considerations
To make an informed decision, it’s equally important to understand the potential challenges of a 4-ply built-up roofing system.
- Higher Upfront Cost: With an average cost of $7.50 to $11.00 per square foot, BUR is a premium system with a higher initial investment than single-ply options.
- Heavier Weight on Structure: The combined weight of asphalt, felts, and gravel ballast is substantial. A structural assessment may be needed to ensure your building can support the load.
- Longer Installation Time: A typical installation on a mid-sized building takes 7-10+ days due to the multi-layered process.
- Installation Fumes: The traditional hot-mop method produces asphalt fumes and odors, which can be a concern for occupied buildings.
- Requires Skilled Labor: The performance of a BUR system is entirely dependent on the expertise of the installation crew. This is not a DIY-friendly system and requires seasoned professionals.
4-Ply BUR vs. Single-Ply Systems (TPO & EPDM)
When choosing a flat roofing system, many property owners compare 4 ply built up roofing with modern single-ply membranes like TPO and EPDM. While all are viable options, they are engineered with different philosophies and serve different priorities. Understanding the fundamental trade-offs is key to making a confident decision.
| Feature | 4-Ply Built-Up Roofing (BUR) | TPO (Thermoplastic Polyolefin) | EPDM (Ethylene Propylene Diene Monomer) |
|---|---|---|---|
| Average Lifespan | 15-30+ years | 15-20 years | 20+ years |
| Average Cost/Sq. Ft. | $7.50 – $11.00 | $5.00 – $8.50 | $4.50 – $7.00 |
| Puncture Resistance | Excellent (multi-layer, gravel ballast) | Good (varies with thickness) | Fair (vulnerable to punctures) |
| Installation | Longer (7-10+ days), labor-intensive | Moderate (3-7 days), heat-welded seams | Faster (3-7 days), adhesive seams |
| Weight | Heavy (significant structural load) | Lightweight | Lightweight |
| Seam Integrity | Monolithic (no seams to fail) | Strong (heat-welded) | Weaker (adhesives can fail) |
| Ideal Use Case | Industrial, high foot traffic, maximum longevity | Warehouses, retail, energy efficiency | Low foot traffic, budget-conscious projects |
Durability and Longevity
The primary advantage of a 4 ply built up roofing system is its multi-layered construction. Damage to the top layer does not automatically cause a leak, as three redundant layers remain. This makes BUR exceptionally resilient in climates like Northwest Arkansas, with its hot summers and freezing winters. The monolithic nature of a BUR system, with no seams to expand and contract, provides a significant advantage over single-ply systems where seam failure is a common point of weakness.
Single-ply systems like TPO and EPDM rely on a single membrane for waterproofing. While technologically advanced, a single puncture can compromise the entire roof. EPDM is flexible but more susceptible to tears, while TPO’s welded seams can be stressed by extreme temperature cycles over time.
Cost and Value Proposition
Initially, a 4 ply built up roofing system costs more, averaging $7.50 to $11.00 per square foot compared to TPO ($5.00-$8.50) or EPDM ($4.50-$7.00). This higher price reflects the intensive labor and greater volume of materials required for a multi-layer installation.
However, the value proposition becomes clear when considering the total cost of ownership. A BUR roof that lasts 30 years at $10/sq. ft. is more economical than a single-ply roof at $6/sq. ft. that needs replacement in 15 years. The latter scenario involves paying for two installations, plus the associated disruption and inflation. For property owners with a long-term hold strategy, the extended service life and reduced repair needs of 4 ply built up roofing often deliver a lower lifecycle cost.
Maintenance, Repair, and Long-Term Costs of 4-Ply Built-Up Roofing
Investing in a 4-ply built-up roofing system is a long-term commitment to your property’s protection. Understanding its maintenance needs and costs allows for effective asset management. With proper care, a BUR roof is a low-maintenance, high-performance asset that can serve your building for a generation.
Typical Lifespan and Warranty
The longevity of a 4 ply built up roofing system is directly tied to the quality of the initial installation and a consistent maintenance schedule. While these roofs are known for their long service life, manufacturer warranties—typically ranging from 10 to 25 years—provide financial protection for your investment. Exploring various roofing materials can help you understand the different components and coverage options available.
Signs Your Roof Needs Repair or Replacement
Even the most durable 4 ply built up roofing system will show signs of aging. Identifying these indicators early can prevent minor issues from becoming major problems. For a detailed walkthrough of solutions, our Flat Roof Repair Complete Guide offers comprehensive advice.
Key warning signs include:
- Blistering: Raised pockets or bubbles where air or moisture is trapped beneath the membrane.
- Splitting or Cracking: Ruptures in the membrane, often caused by thermal stress or structural movement, that create direct paths for water intrusion.
- Alligatoring: A pattern of shrinkage cracks on the surface that resembles alligator skin, indicating the asphalt is aging and losing its protective oils.
- Widespread Gravel Loss: Bare spots on the roof where the gravel surfacing has eroded, exposing the underlying asphalt to damaging UV radiation.
Factors Influencing Installation Cost
Several factors influence the final price for a new 4-ply built-up roofing system:
- Project Size: Larger roofs may have a lower per-square-foot cost due to economies of scale.
- Accessibility: Difficult-to-reach roofs or high-rise buildings may incur higher labor and equipment costs.
- Tear-Off: Removing an existing roof system adds significant labor and disposal costs.
- Insulation and Materials: The type and thickness of insulation and the choice of surfacing material (gravel, slag, or cap sheet) will affect the price.
While the upfront cost is higher than some alternatives, the long-term value is compelling. The extended service life and superior durability of 4 ply built up roofing often result in a lower total cost of ownership over the life of the building.
Finding a Trusted Roofing Partner in Northwest Arkansas
The performance of a 4 ply built up roofing system is directly tied to the skill of the installation crew. This complex system demands precision at every step, from controlling asphalt temperature to executing flawless flashing details. Choosing the right roofing contractor in Northwest Arkansas is the most critical decision you will make to protect your investment.
You need a team that understands how to build a roof that can withstand our region’s unique climate—from hot, humid summers to freezing winters. An experienced local contractor will ensure your 4 ply built up roofing system is built to last.
Your Local BUR Experts
For over 50 years, Heritage Roofing & Repair has been the trusted choice for commercial roofing in the region. Our extensive experience with 4 ply built up roofing systems covers industrial facilities, warehouses, and retail centers across Berryville, AR, and the surrounding areas. We understand that commercial properties can’t afford downtime, which is why we prioritize meticulous planning and clear communication on every project.
Our expertise also extends to storm damage repair and navigating insurance claims, helping local businesses recover quickly after severe weather. When you partner with us, you are choosing dependable, quality craftsmanship backed by decades of proven results. We are your neighbors, and we will be here to support your investment long after the installation is complete.
Heritage Roofing & Repair
3458 Arkansas State Hwy 221, Berryville, AR 72616
(870) 654-1164
Conclusion: Investing in a Multi-Layered Defense for Your Property
Choosing a commercial roofing system is a major decision. A 4-ply built-up roofing system represents an investment in decades of reliable, worry-free protection. Its time-tested performance is rooted in a simple but powerful concept: redundancy. With multiple layers of waterproofing, your property is defended by a system engineered for endurance.
We’ve seen that its superior durability, puncture resistance, and proven lifespan of 30+ years make it an ideal choice for industrial buildings and high-traffic roofs. While the initial investment is higher than single-ply alternatives, its longevity and low maintenance needs often result in a lower total cost of ownership.
The 4 ply built up roofing system has protected commercial properties for over a century because it is fundamentally robust. The monolithic, seamless membrane and redundant layers provide a level of security that gives property owners true peace of mind.
When you are ready to invest in a roof that is built to last, the team at Heritage Roofing & Repair is here to help. For expert advice and professional installation backed by over 50 years of local experience, explore our comprehensive commercial roofing services. Let us help you secure your investment with a multi-layered defense that will protect your property for decades to come.
